Dry Back LVT Flooring (Glue-Down Vinyl Flooring)
-
-
Dry Back LVT (Glue-down) is a stable, waterproof floor for high-traffic zones. It features custom patterns and easy single-plank replacement.
● Ultra-Stable: Fully bonded; no shifting.
● Waterproof: Ideal for kitchens & baths.
● Design: Supports herringbone & motifs.
● Tough: Scratch-resistant; easy clean.
● Comfort: Floor heating compatible.
Dry back LVT is often used in commercial settings because of its ability to withstand heavy foot traffic and its long-lasting, stable nature.
Dry Back LVT vs. Click-Lock LVT
● Stability: Glue-down offers better stability in large, high-traffic, or sunny rooms.
● Repair: If a plank is damaged, a dry back plank can be easily removed and replaced without disturbing the whole floor.
● Thickness: Generally, dry back LVT is thinner and more flexible than rigid core (click-lock) options.
LVT Dry Back Flooring is a high-performance, high-stability luxury vinyl flooring that is installed using adhesive bonding.
It is a professional choice for commercial projects and residential projects seeking ultimate stability,
but its installation requirements are much higher than those of popular click-lock flooring.
Installation Considerations
● Subfloor Preparation: Requires a clean, dry, and smooth subfloor, as the flexible planks can telegraph imperfections.
● Adhesive: Uses either hard-set or pressure-sensitive adhesive to fix the planks directly to the subfloor.
● Professionalism: While DIY is possible, professional installation is recommended to ensure a secure, long-lasting bond.
Ideal for Distributors & Importers
● Best-sellers + premium series to cover different price tiers
● Stable supply for repeat orders
● Private label / packaging support available
Ideal for Contractors & Installers
● Practical for large-area glue-down projects
● Installation notes available based on site conditions
Ideal for Project Buyers / Developers
● Suitable for commercial bidding and multi-site supply
● Consistent specification confirmation for project continuity
Normal Size – classic plank/tile formats for high-volume demand
| Normal Size LVT | |
| Thickness : | 1.2mm/1.5mm/2.0mm/3.0mm/4.0mm/5.0mm |
| Wear Layer : | 0.1mm/0.15mm/0.2mm/0.3mm/0.5mm/0.7mm |
| Planks surface embossing : | Plain / Deep / Hand Scraped |
| Tiles surface embossing : | Carpet / Slate / Orange Peel |
| Surface coating : | UV Coating |
| Surface glossiness : | Matt(4-6°) / Semi Matt(8-12°) / Glossy(18-22°) |
| Material : | 100% Virgin Material / Recycled Material |
| Round edge beveling: | 0.5mm Wear Layer Available |
| Backing design : | Plain |
| Planks Specification: | 6inch x 36inch (152.4mm x 914.4mm) |
| 6inch x 48inch (152.4mm x 1219.2mm) | |
| 7.2inch x 36inch (183mm x 915mm) | |
| 9inch x 36inch (228.6mm x 914.4mm) | |
| 7inch x 48inch (177.8mm x 1219.2mm) | |
| 9inch x 48inch (228.6mm x 1219.2mm) | |
| Tiles Specification: | 12inch x 12inch (304.8mm x 304.8mm) |
| 12inch x18inch(304.8mm x 457.2mm) | |
| 12inch x 24inch (304.8mm x 609.6mm) | |
| 18inch x 18inch (457.2mm x 457.2mm) | |
| 18inch x 36inch (609.6mm x 914.4mm) | |
| 24inch x24inch (609.6mm x609.6mm) | |

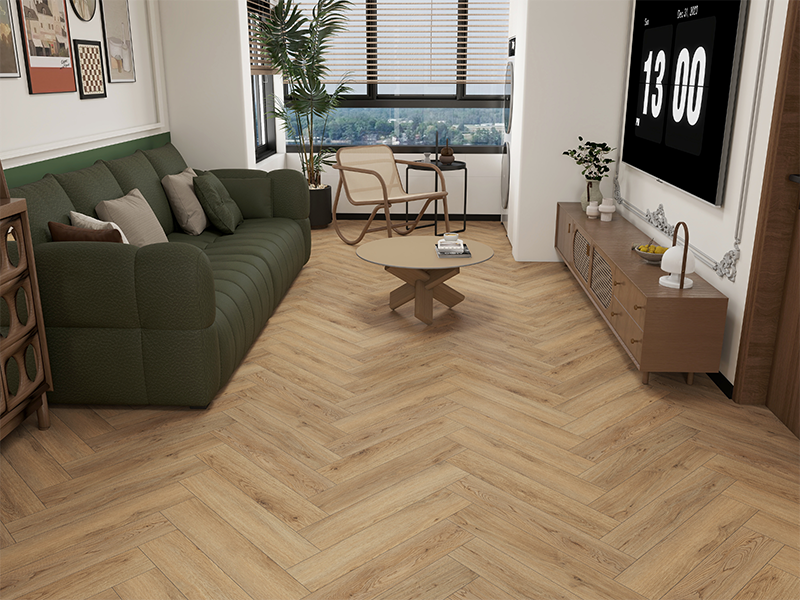

Herringbone – decorative layout for premium interiors
| Herringbone LVT | |
| Tile Size : | 3inch x 12inch (76.2mm x 304.8mm) |
| Thickness : | 3.0mm Wear Layer : 0.5mm (20mil) |
| m²/Plank : | 0.02323m² (0.25sq.ft.) |
| Planks/Carton : | 80 pcs |
| m²/Carton : | 1.8584㎡ (20sq.ft.) |
| Cartons/Pallet : | 99 carton |
| Pallets/20ft Container : | 20 pallets |
| m²/20ft Container : | 3680㎡ (39611sq.ft.) |
| N.W./G.W.(kgs/20ft) : | 20976kgs / 22078kgs |
| CBM/20ft Container : | 20m³ |

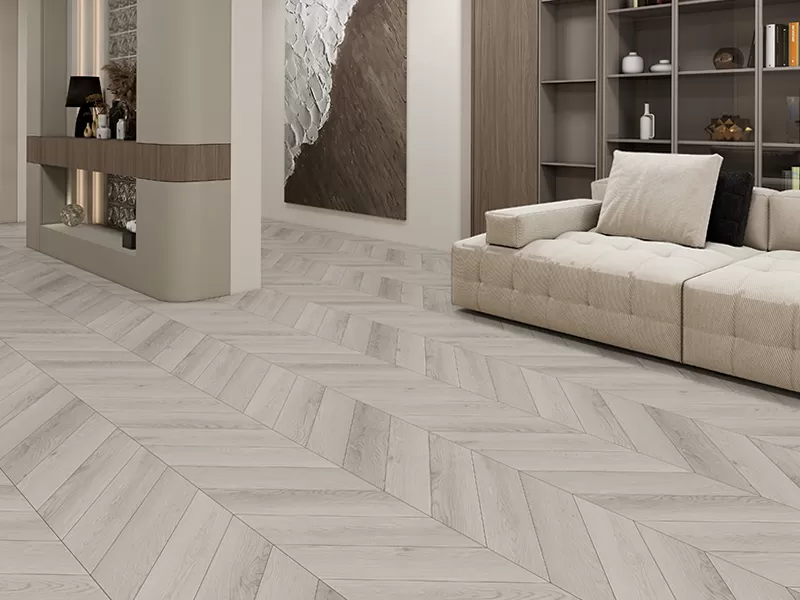

Chevron – continuous “V” rhythm for high-end design
| Chevron Vinyl Flooring | |
| Tile Size : | 4.5inch x 22.5inch (114.3mm x 571.5mm) |
| Thickness : | 2.5mm Wear Layer : 0.3mm (12mil) |
| m²/Plank : | 0.0653m² (0.70sq.ft.) |
| Planks/Carton : | 25 pcs |
| m²/Carton : | 1.63305㎡ (18sq.ft.) |
| Cartons/Pallet : | 132 carton |
| Pallets/20ft Container : | 20 pallets |
| m²/20ft Container : | 4311㎡ (46406sq.ft.) |
| N.W./G.W.(kgs/20ft) : | 20478kgs / 21556kgs |
| CBM/20ft Container : | 20m³ |
Irregular – creative shapes for custom projects
| Hexagon Vinyl Flooring | |
| Flooring Size : | 9inch x 9inch (224mm x 224mm) |
| Thickness : | 3.0mm |
| Wear Layer : | 0.5mm (20mil) |
| m²/Tile : | 0.04554m² (0.5sq.ft.) |
| Tiles/Carton : | 25 pcs |
| m²/Carton : | 1.385(15sq.ft.) |
| Cartons/Pallet : | 162 cartons |
| Pallets/20ft container : | 20 |
| m²/20ft container : | 3689㎡ (39708sq.ft.) |
| N.W./G.W.(kgs/20ft) : | 21026kgs / 22134kgs |
| CBM/20ft container : | 20m³ |
| Rhombus Vinyl Flooring | |
| Tile Size : | 10inch x 10inch (250mm x 250mm) |
| Thickness : | 3.0mm Wear Layer : 0.5mm (20mil) |
| m²/Tile : | 0.05413m² (0.583sq.ft.) |
| Tiles/Carton : | 26 pcs |
| m²/Carton : | 1.4074 (15.15sq.ft.) |
| Cartons/Pallet : | 132 cartons |
| Pallets/20ft Container : | 20 pallets |
| m²/20ft Container : | 3715㎡ (39988sq.ft.) |
| N.W./G.W.(kgs/20ft) : | 21174kg / 22292kg |
| CBM/20ft Container : | 20m³ |
Choose designs that match your market positioning:
Wood Look (Mainstream) – natural patterns for broad residential and commercial interiors
Modern Stone/Concrete Look – clean and minimal style for offices and retail
Textured Finishes – realistic visual depth and better design expression
Multiple Color Tones – from warm residential tones to modern commercial tones
Design and surface options can be recommended based on your target market and project style.
LVT Dry Back Flooring (Dry Back Luxury Vinyl Tiles) has a clearly defined physical structure, with each layer serving a specific function. Similar to click-lock LVT in its core layer, it lacks a click-lock system and has a different bottom layer design.
Structural Details
1. Wear Layer
Thickness: Commercial grade is typically 0.3mm - 0.7mm; high-end commercial or heavy-duty commercial grades can exceed 1.0mm.
2. Decorative Layer
Function: Realistically mimics the textures of wood, stone, concrete, etc., using high-definition photography and printing technology.
The pattern usually runs the entire length of the tile, ensuring the texture remains continuous and aesthetically pleasing even after cutting.
3. Core Layer
This is the "skeleton" of the LVT. The core layer of dry-back LVT is as rigid as click-lock LVT, but its shape is a flat rectangle without a click mechanism.
Thickness: Typically 3mm - 8mm. A thicker core layer provides a better feel underfoot, but the overall thickness of dry-back LVT is usually slightly thinner than click-lock LVT.
4. Fiberglass Layer
Function: Provides bidirectional stability, preventing warping or deformation of the tiles in both length and width directions.
Enhancing the overall structural strength and dimensional stability of the product is one of the hallmarks of high-quality dry-back LVT.
5. Dry-Back Substrate
Core Functions:
Optimized Adhesion: Its textured design acts like a "suction cup," allowing applied liquid adhesive to penetrate and hold better, forming a strong bond and preventing delamination.
Stress Balancing: Provides slight flexibility to help compensate for minor unevenness in the substrate.
Enhanced Sound Insulation: Provides a degree of cushioning and sound insulation
LVT Dry Back Floor is an "engineering-oriented" flooring material. Its primary applications are determined by its core values of "permanence and ultra-high stability."
It should be considered as a priority when your project meets any of the following criteria:
Spatial Attributes: Commercial, public, high-traffic.
Load Types: Presence of numerous heavy, wheeled mobile objects (trolleys, equipment chairs, medical beds, shelves).
Installation Requirements: Achieving an extremely flat, seamless, and unified visual and functional effect.
Substrate Conditions: A flat, solid concrete substrate, and the most reliable installation solution.
We provide export-standard packaging suitable for international shipping. Packaging solutions can be tailored to your product positioning and logistics needs.
● Standard carton packing with optional palletization
● Container loading support and shipment coordination available upon request
● Custom OEM carton design for private label partners
If you require packaging references (carton dimensions, labeling, loading plans), please contact us and we will provide a practical proposal
Ready to source Normal Size SPC Flooring?
Send us your target market, required designs and estimated quantity. TAB FLOORING will respond with suitable product options, practical cooperation suggestions and a reliable supply plan.
Contact us now to request samples and a quotation.
